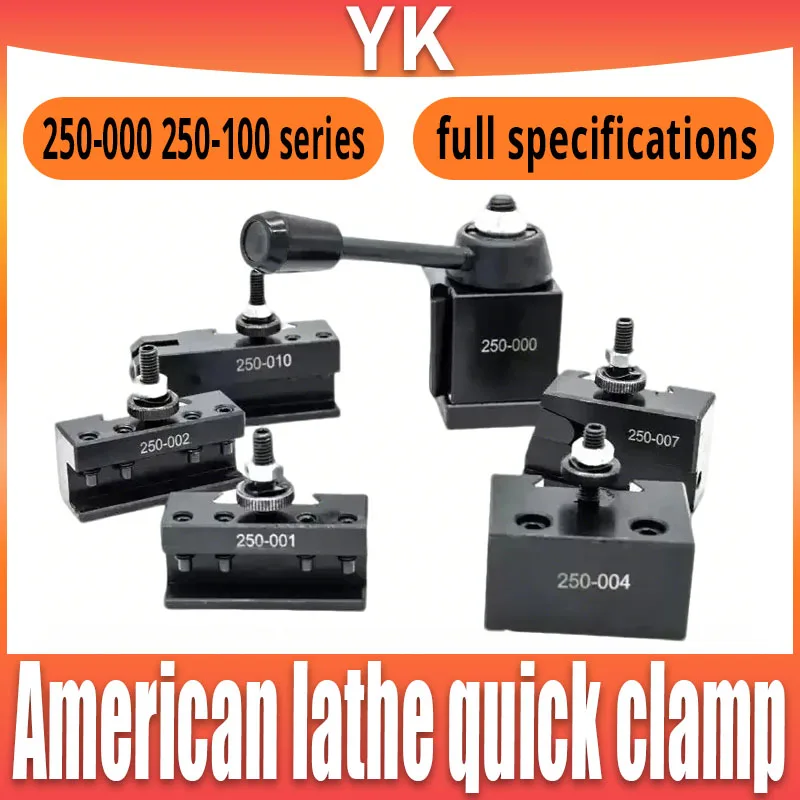

Lathe Tool Holder – American Boring Quick Change Tool Holder (Model 250-001/250-002/250-004/007/250-101/102)
Product Overview
Upgrade your machining precision with the American Boring Quick Change Tool Holder. Designed for high‑speed lathes and CNC machines, this robust holder delivers exceptional accuracy, durability, and effortless tool swaps. Whether you’re a hobbyist or a professional shop, the 250 series offers unmatched performance for a wide range of boring and cutting applications.
Key Highlights
- Quick‑Change Design: Rapid tool changes with minimal downtime – perfect for high‑volume production.
- Universal Compatibility: Fits a variety of American Boring lathe models – 250‑001, 250‑002, 250‑004, 250‑007, 250‑101, and 250‑102.
- High‑Strength Construction: Made from premium alloy steel with heat‑treated surfaces for maximum wear resistance.
- Precision‑Milled: Tight tolerances ensure repeatable positioning and superior surface finish.
- Easy Installation: One‑handed operation with standard tool holder mounting hardware.
- Long‑Lasting Performance: Designed to withstand heavy loads and high‑speed machining without distortion.
Technical Specifications
- Material: Alloy Steel (AISI 4140)
- Heat Treatment: Case Hardened for optimal hardness
- Weight: 1.2 kg (approx.)
- Dimensions: 75 mm × 45 mm × 30 mm (varies by model)
- Mounting: Standard 1‑inch (25.4 mm) bore
- Surface Finish: 0.1 µm RMS
Compatibility & Usage
These tool holders are engineered to work seamlessly with American Boring lathe heads and CNC spindle units. They support a wide range of boring bars, cutters, and chucks, making them ideal for:
- Precision boring and drilling operations
- High‑speed cutting of metal components
- Custom tool setups in small‑batch production
- Retrofit projects for older lathe machines
Benefits for Your Workshop
- Reduces setup time, boosting overall productivity.
- Improves tool life with secure, vibration‑resistant mounting.
- Enhances part accuracy, reducing rework and waste.
- Offers a cost‑effective solution for multiple tool configurations.
Care & Maintenance
Keep your tool holder in peak condition by following these simple steps:
- Clean with a soft brush after each use to remove metal shavings.
- Inspect for cracks or wear before each job; replace if necessary.
- Store in a dry environment to prevent corrosion.
- Apply a light coat of machine oil periodically to maintain surface integrity.
Why Choose Our Quick Change Tool Holder?
We combine proven engineering with rigorous quality control to deliver a tool holder that meets the exacting standards of modern machining. With a focus on durability, precision, and user convenience, our 250 series is the trusted choice for professionals worldwide.
Order now and experience the difference in speed, accuracy, and reliability for your lathe operations.
