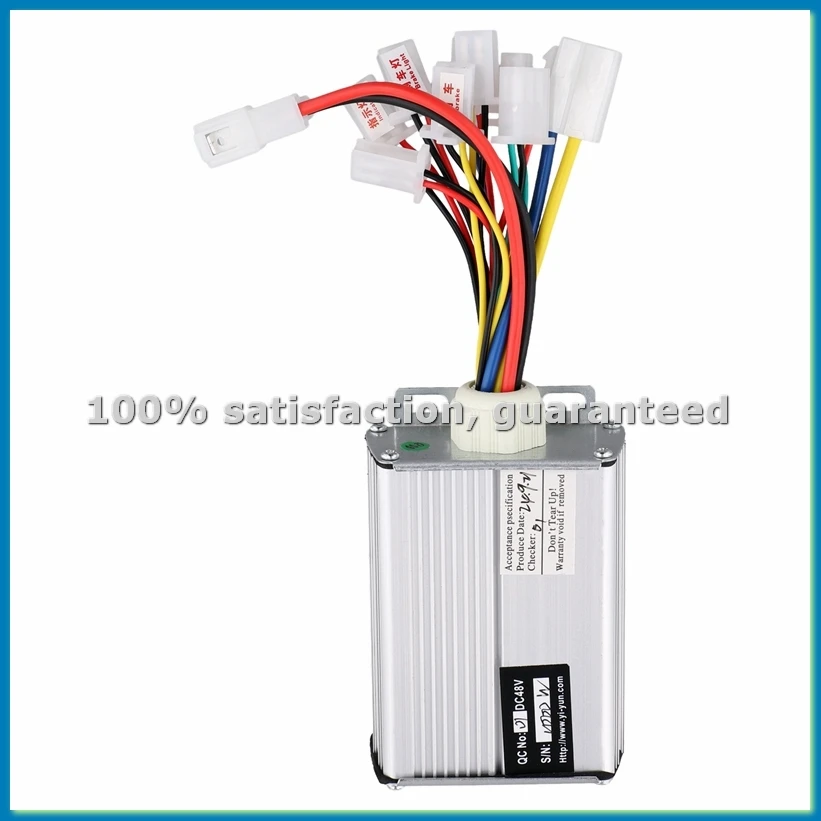

Electric Bike Bicycle Brushed Controller 48V 1000W Electric Scooter Controller Brush DC Motor Speed Controller-ABFB

Description

Upgrade your ride with the Electric Bike Bicycle Brushed Controller 48V 1000W – the ultimate power hub for electric scooters, e‑bikes, and brushed DC motor projects. Engineered for high performance, reliability, and easy installation, this controller delivers smooth acceleration, precise speed control, and robust protection for a thrilling yet safe riding experience.

Key Highlights

• ⚡ 48 V / 1000 W output for powerful acceleration and hill‑climbing capability.
• 🔧 Brush DC motor compatibility – perfect for most standard e‑bike and scooter brushed motors.
• 🛡️ Built‑in safety features: over‑current, over‑voltage, over‑temperature, and short‑circuit protection.
• 🌧️ IP65‑rated waterproof housing – reliable performance in rain or dusty conditions.
• 🔋 Optimized for high‑efficiency energy use, extending battery life and range.
• 🧩 Simple plug‑and‑play wiring with clear terminal markings for hassle‑free installation.

Technical Specifications

• Input Voltage: 48 V ± 10 %
• Maximum Power: 1000 W
• Motor Type: Brushed DC
• Current Rating: 30 A continuous, 45 A peak
• Control Method: PWM (Pulse Width Modulation) with adjustable throttle response
• Operating Temperature: –20 °C to +60 °C
• Dimensions: 120 mm × 80 mm × 45 mm
• Weight: 350 g
• Connector Type: Standard 6‑pin plug (compatible with most e‑bike kits)
• Certifications: CE, RoHS

Why Choose This Controller?

Designed for riders who demand both power and peace of mind, the ABFB 48V 1000W controller balances high output with intelligent protection circuitry. Whether you’re tackling steep urban hills or cruising on flat terrain, the controller’s smooth PWM algorithm ensures responsive throttle control without jerky starts.

• Enhanced Riding Experience: Instant torque delivery for quick starts and confident overtaking.
• Durable Construction: Aluminum alloy housing resists impact and vibration.
• Energy‑Smart: Optimized efficiency reduces battery drain, giving you longer rides per charge.
• Universal Fit: Works with most 48 V brushed motor setups on e‑bikes, electric scooters, and DIY projects.

Compatibility & Installation

This controller is compatible with any 48 V brushed DC motor up to 1000 W, making it ideal for popular e‑bike conversion kits, off‑road electric scooters, and custom electric vehicle builds. Installation is straightforward:

• Connect the battery leads to the B+ and B‑ terminals.
• Attach the motor wires to the M+ and M‑ terminals.
• Plug the throttle and brake inputs into the designated ports.
• Secure the controller in a dry, ventilated location using the mounting brackets.

Package Includes

• 1 × 48V 1000W Brushed Motor Controller (ABFB model)
• 1 × User Manual with wiring diagram
• 1 × Set of mounting screws

Elevate your electric ride with the Electric Bike Bicycle Brushed Controller 48V 1000W – the reliable, high‑performance heart your e‑bike or scooter deserves.
