36V 48V 1000W/1500W 35A Electric Bike Controller With LCD Display Thumb Throttle For Ebike Electric Scooter-A00E

Description

Powerful & Versatile 36V‑48V Electric Bike Controller

Upgrade your e‑bike or electric scooter with the 36V 48V 1000W/1500W 35A Electric Bike Controller (Model A00E). Designed for high‑performance rides, this controller delivers smooth, reliable power to your motor while featuring an integrated LCD display and thumb throttle for ultimate control on the road.

Key Highlights

• Wide Voltage Compatibility: Works flawlessly with 36V or 48V battery systems.
• High Power Output: Supports 1000W‑1500W motors with a robust 35A continuous current rating.
• Built‑in LCD Display: Real‑time readout of speed, voltage, current, and battery level.
• Responsive Thumb Throttle: Precise acceleration control for a smoother riding experience.
• Compact & Rugged Design: Aluminum housing with heat‑dissipating fins for reliable operation in all weather conditions.
• Easy Installation: Plug‑and‑play wiring harness and clear labeling for quick setup.

Why Choose the A00E Controller?

Whether you’re building a custom e‑bike, upgrading an existing scooter, or looking for a reliable replacement, the A00E offers unmatched performance and durability. Its dual‑voltage capability means you can switch between 36V and 48V batteries without swapping hardware, giving you flexibility to extend range or boost power as needed.

Technical Specifications

• Input Voltage: 36 V / 48 V
• Maximum Power: 1000 W / 1500 W
• Continuous Current: 35 A (Peak 45 A)
• Operating Temperature: -20 °C to +60 °C
• Display: 0.96‑inch LCD (speed, voltage, current, battery %)
• Throttle: Thumb‑type, 0‑100 % acceleration
• Dimensions: 120 mm × 80 mm × 30 mm
• Weight: 350 g

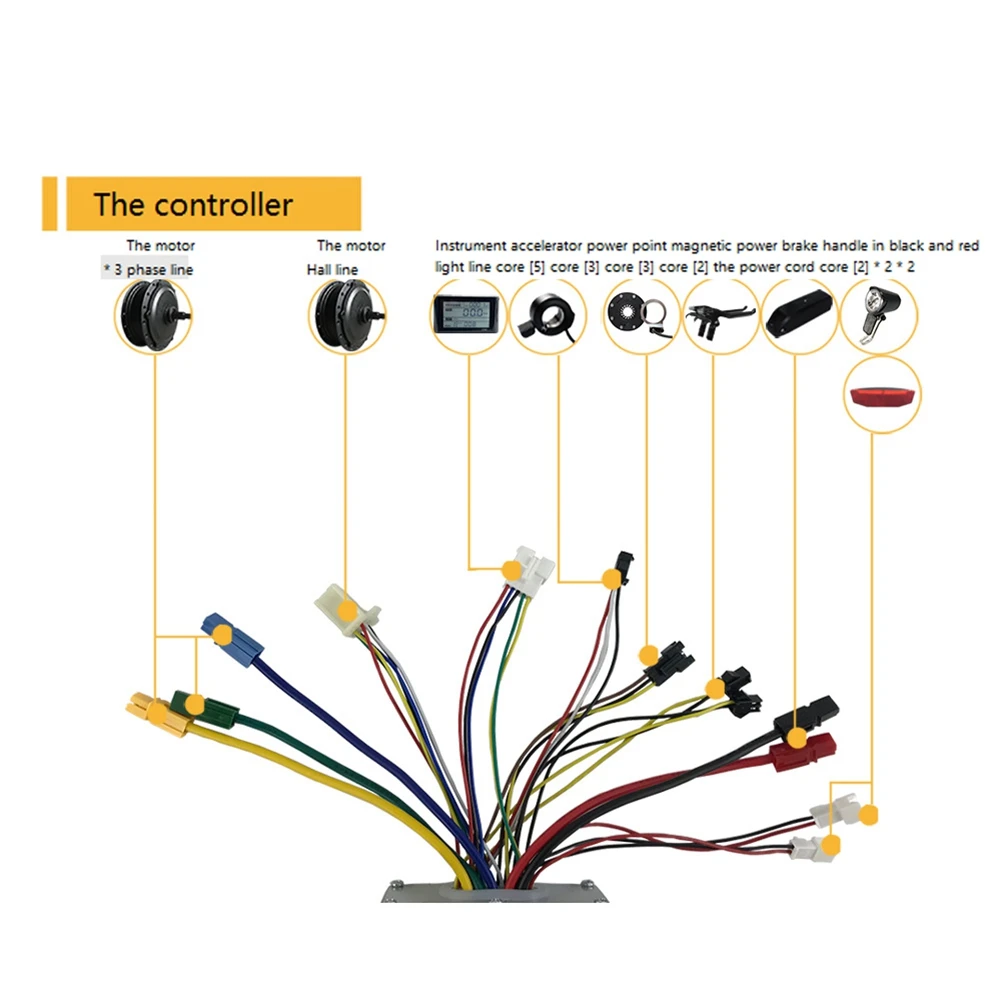

• Connector Types: Standard XT60, 3‑wire motor leads, LCD & throttle plugs

Compatibility

Perfect for:

• Mid‑drive and hub‑motor e‑bikes (1000W‑1500W)
• Electric scooters with 35A motor controllers
• DIY electric vehicle projects

Installation & Setup

1. Disconnect the battery.
2. Connect the power input leads to your 36V or 48V battery.
3. Attach the motor leads to the controller’s output terminals.
4. Plug the LCD display and thumb throttle into their dedicated sockets.
5. Secure the controller in a protected location and re‑connect the battery.
6. Power on and calibrate the throttle via the LCD menu.

Customer Satisfaction Guarantee

We stand behind the quality of the A00E controller with a 12‑month warranty and dedicated technical support. Ride with confidence knowing your e‑bike or scooter is powered by a reliable, high‑performance controller.

Order Now

Boost your ride’s power, range, and control with the 36V 48V 1000W/1500W 35A Electric Bike Controller with LCD Display and Thumb Throttle. Click “Add to Cart” to experience smoother acceleration and precise monitoring on every journey.
